CNC Press Brake Machine

Product Description

CNC press brakes are designed to give more accuracy and better productivity. The controller has a facility to program the various jobs with complex bending sequence on screen. The CNC Control is used for Three Axis Control or more.

Synchronized Ram Axes Y1 & Y2

Back Gauge Axis X

The program gives facility to bend different bending degrees; different back gauge positions & different open positions. It has a facility to save different programs and it can be reloaded as & when required. The back gauge consists of Flip-top Fingers, Ball Screw & Linear guides along with drive.

Range: 20MT to 200MT | Length: 1250 mm to 4000 mm

The machine can be equipped with some high-end optional accessories like,
Back gauge Axis X1, X2, R & Z
Anti- Deflection units (Crowning System)
Special profile Hardened Dies & Punch

Product Features

• World class dedicated controller from Cybelec & Step Automation.

• Highly Precise press brake scale for Y1, Y2 axis.

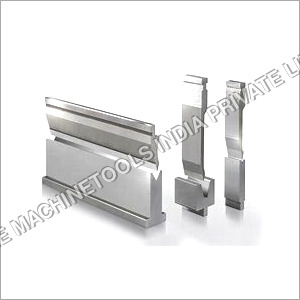

• Hardened & ground Multi V Die & Punch.

• Highly Precise proportional valve to control accurate beam movement.

• 3 or more axis control i.e. ram axis Y1,Y2 & Back gauge axis x.

• Open & Close loop proportional hydraulics for ram synchronization.

• Manual Anti deflection unit in punch.

• The power pack is supplied by Hoerbiger / Atos

• Bend angle & Depth Mode program.

• Zero leak sealing of hydraulic cylinders.

• Quick release die clamps.

• Back gauge consist of hardened & ground ball screw, liner motion bearings and AC servo drive for accurate position up to 0.05 mm.
