Product Description

Press Brake Back Gauge

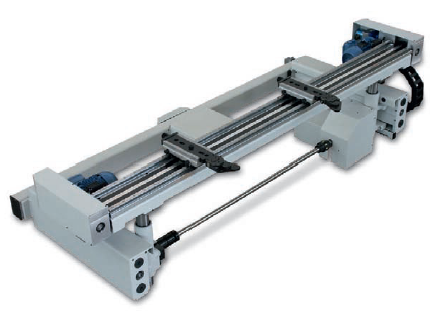

A back gauge is a mechanical system, normally attached to a press brake. Its main function is to interface with the press brake computer numerical control (CNC), moving along several different axes in order to position a piece of metal for forming.

Back gauges typically have anywhere from 1 to 9 axis of movement. Each of these individual axis is controlled by a separate electric motor / manual.

As the name suggest gauge means measuring exact, so back gauge provide direction to the work piece coming outward of the machine after cutting operation. X1, X2, R1, R2, Z1, Z2-axis: all is back gauge control axis to control back gauge positioning

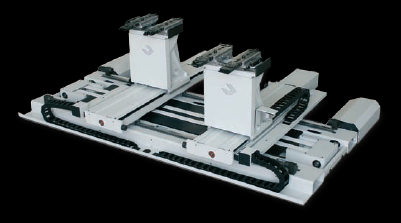

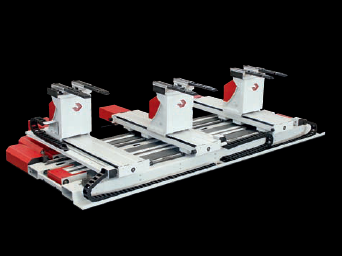

We are providing Multi axis back gauge unit with customized sizes against your requirement.
